Mobile Crusher

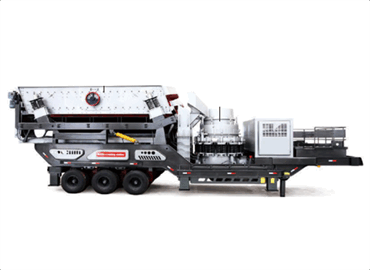

Mobile Tyre Cone Crushing Plant
Mobile Tyre Cone Crushing Plant
Introduction:

Product Details

PRODUCT FEATURES
 XRM-C series wheeled cone crusher loaded by the rotary cone crusher adopts XRC hydraulic cone crusher with fully hydraulic closed side adjustment device, which can produce 10-45 mm aggregate. The hydraulic closed side adjusting device of cone crusher is to adjust the setting of crusher quickly and conveniently. The adjustment is carried out through the control box, which makes the system very suitable for the occasions where the discharge port parameters need to be adjusted regularly.
WORKING PRINCIPLE
The material is uniformly transported to the cone crusher by the feeder. After the cone crusher is broken, the circular vibrating screen constitutes a closed circuit system to realize the circular crushing of the material. The finished material is output by the belt conveyor for continuous crushing. Conical mobile crushing station can remove circular vibrating screen according to the actual production needs, and realize the direct crushing of materials. It is easy to operate and flexible with other crushing equipment.
TECHNICAL ADVANTAGES
1.Good mobility.
2.Compact structure and easy to use.
3.Save costs and reduce expenses.
4.Higher applicability
5.Stable performance and easy maintenance.
6.Flexible configuration.
7.STRUCTURAL COMPONENTS
8.All components of the conical mobile crushing station are onboard, including: firm frame, conical crusher, feeder, vibrating screen, conveyor, motor and control box, etc


Leave Message

Parameters Table

ItemsXRM-C120XRM-C180SXRM-C180XRM-C250SXRM-C250

Length(mm)

11200

11800

10000

12300

10816

Wide(mm)

2743

2743

2480

2900

2743

High(mm)

4200

4200

4160

4200

4160

Weight(kg)

28400

30500

22400

48700

35700

Axle load(kg)

15500

16300

14300

31100

22900

Cone crusher

Model

XRC120

XRC180

XRC180

XRC250

XRC250

The largest feed(mm)

160

180

180

240

240

Adjustment range of discharge port(mm)

22-32

22-32

22-32

26-51

26-51

Vibrating screen

Model

3YK1545

4YK1548

4YK1548

4YK1848

4YK1848

Belt conveyor

Model

B800x8

B800x8

B800x8

B1000x8

B1000x8
