Mobile concrete batching plant

CBP100M
CBP100M
Introduction:The fully enclosed structure of the mixer and the aggregate belt conveyor greatly reduces the environmental pollution caused by dust and noise.

Product Details

1. The mixier adopts twin-shafttype. Concrete with good mixing quality, high productivity and various ratios can be mixed.

2. The mixer is equipped with a high-pressure pump cleaning device, which has good maintenance performance.

3. Itadopts dual-computer control system and can observe the on-site workflowclearly and accurately.

4. The components of the electronic control system are top European brand, with stable performance and powerful functions.

5. The fully enclosed structure of the mixer and the aggregate belt conveyor greatly reduces the environmental pollution caused by dust and noise.

Leave Message

Parameters Table

ITEMSUNITSCBP100M

  Theoretical Productivity

m³/h

100

  Mixer model

/

JS2000

  Motor power

kW

2×37

  Nominal capacity of mixer

L

3000

  Automatic Cycle Period

S

72

  Max.aggregate size(crushed stone / pebble)

mm

60/80

  Aggregate bin capacity

m³

4×16

  Type of aggregate

/

4

  Weighing range and accuracy of aggregate

kg

(1666~5000)±2%

  Weighing range and accuracy of cement

kg

(400~1200)±1%

  Weighing range and accuracy of water

kg

(200~600)±1%

  Weighing range and accuracy of additive

kg

(20~60)±1%

  Total power(Without silo & screw conveyor)

kW

110

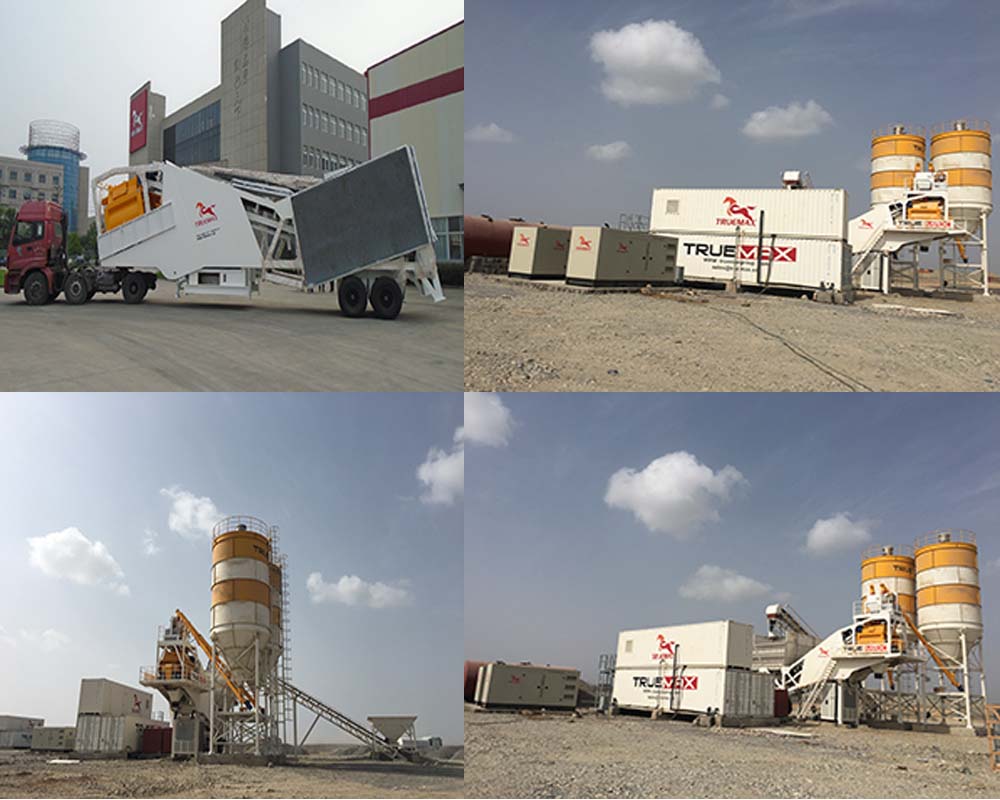

Customer case

CBP100M
