Concrete Truck-Mounted Boom Pump

TP62RZ6
TP62RZ6
Introduction:

Product Details

1. Using well-known brand transmission parts to ensure the reliability of the power system.
2. Using imported multi-way valve to ensure the safety of working conditions
3. Telescopic rear outrigger swing out, front outriggers  "X" type, suitable for narrow construction conditions
4. Optimized boom design, fold and unfold smoothly, a wider range of booms to meet different requirements
5. High reliable pneumatic components
6. Large capacity water tank and high pressure cleaner facilitates cleaning after the work is completed
7. Automatic centralized lubrication system is convenient for some of the main parts, extending the equipment lifespan
8. Electronic control system using PLC/CAN-BUS,according to diesel engine of chassis


Leave Message

Parameters Table

ITEMSUNITSTP62RZ6


Boom

System

Vertical Reach

m

61.1

Horizontal Reach

m

55.9

Slewing Angle

°

±270

Rubber Hose

Length

m

3


Pumping

System

Max.Theoretical

Output

m³/h

180

Max.Theoretical

pressure

MPa

8.6

Distribution

Valve

/

S Valve

Hydraulic System

Pressure

MPa

32

Concrete Cylinder (Bore×Stroke)

mm

260×2200

Delivery Line

Diameter

/

DN125

Hopper Capacity

L

700


Chassis

Chassis Brand

/

Benz

Axles

/

8×4

Engine Power

kW

300

Max.Travel Speed

km/h

≤85

Wheel ba

mm

2020+4280+1350


Overall

verall

Dimensions(L×W×H)

mm

15200×2530×4000

Total Weight

kg

47700

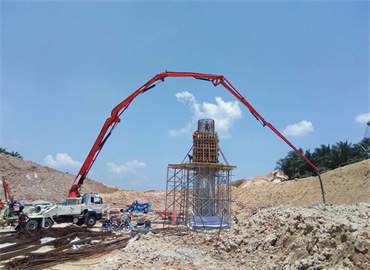

Customer case
