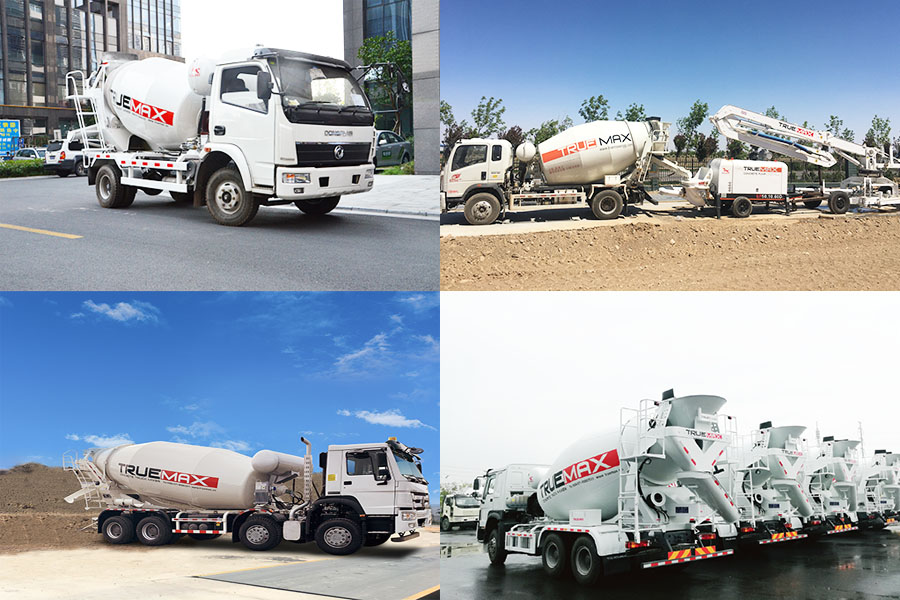

Concrete Truck Mixer

CTM8
CTM8
Introduction:

Product Details

Multi Types of Chassis Match
1.The upper can match with different Chassis of 6-10 axles
2.The upper can be designed to match with different Chassis as requirement.
Mixing Drum Structure
1.The drum body and blades are made by quality wearable exclusive steel plate Q345. And the drum is suit for transport both dry and wet materials.

Leave Message

Parameters Table





ModelUnitCTM8

 Mixing Type

/

Dry/Wet

 Geometric Volume of Drum

m³

11.8

 Material of Drum & Blades

/

Q345

 Inclination Angle for Drum

/

16

 Padding Rate

%

67.8

 Residual Rate

%

<0.2

 Charging Speed

m&sup3;/min

&ge;3

 Discharging Speed

m&sup3;/min

>1

 Mixing Speed

r/min

0-14

 Hydraulic Pump

/

Rexroth A4VTG090

 Hydraulic Motor

/

Rexroth AA2FM80

 Reducer

/

ZFP4300

 Radiator

/

KT-18

 Capacity for Water Tank

L

240

 Water Supply

/

Air/Electrical Pump

 Slump Range

mm

50-210

 Water Supply Pressure

MPa

0.3

 Max.External Diameter of Drum

mm

2050

 Length of the Drum

mm

4550

 Overall Dimension(L*W*H)

mm

580*2500*2816
