Concrete Truck-Mounted Boom Pump

TP56RZ6
TP56RZ6
Introduction:The best match between the engine,the hydraulic pump and the load,so that the engine power can be fully absorbed and the power is strong;

Product Details

1.Simple structure,low cost,suitable for centralized large-scale projects;

2.Liquid crystal display controller,the control system has strong performance and the operation is more user-friendly;

3.The best match between the engine,the hydraulic pump and the load,so that the engine power can be fully absorbed and the power is strong;

4.Four-axle chassis,reasonable design of boom,strong stability and high safety factor.

5.Fully automatic feeding,which integrates the functions of forced stirring,pumping,and cloth,and has a high degree of automation.

Leave Message

Parameters Table

项目ITEMS

单位UNITS

TP56RZ6

臂架系统
Boom System

臂架垂直高度

Vertical Reach

m

56

臂架水平长度

Horizontal Reach

m

51

转台旋转角度

Slewing Angle

°

±270

布料软管长度

Rubber Hose Length

m

3

泵送系统
Pumping
System

最大理论混凝土排量

(低压/高压)

Max.Theoretical Output

(Low/Hight)

m³/h

180/120

最大理论泵送压力

(低压/高压)

Max.Theoretical pressure

(Low/Hight)

MPa

8.3/12

分配阀形式

Distribution Valve

/

S阀 S Valve

液压系统压力

Hydraulic System Pressure

MPa

32

输送缸(直径×行程)

Concrete Cylinder(Bore x Stroke)

mm

260×2100

输送管径

Delivery Line Diameter

/

DN125

料斗容积

Hopper Capacity

L

700

底盘
Chassis

底盘品牌

Chassis Brand

/

汕德卡 Sitrak

轮轴

Axles

/

8×4

发动机功率

Engine Power

kW

324

最高车速

Max.Travel  Speed

km/h

≤85

轴距

Wheel Base

mm

1950+4500+1400

整车
Overall

外型尺寸(L×W×H)

verall Dimensions(L×W×H)

mm

13820×2550×4000

重量

Total Weight

kg

44000

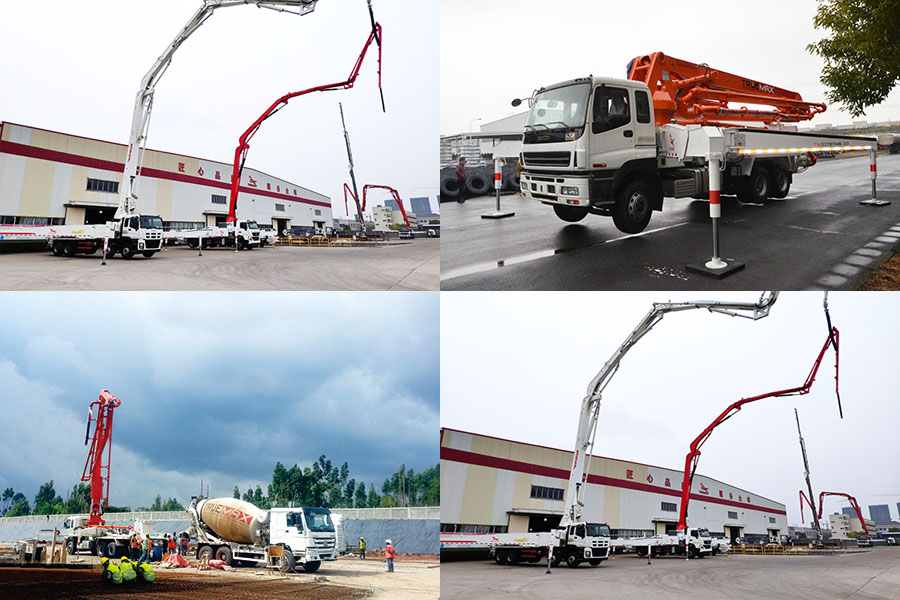

Customer case
