Stationary concrete batching plant

CBP60S
CBP60S
Introduction:Sophisticated parts:screw conveyor,metering sensor,pneumatic components.Ensuring the high reliability of the batching plant.

Product Details

1.The mixer adopts JS series,with good mixing performance.

2.High configuration,simple operation,cost saving and wide range of use.

3.Sophisticated parts:screw conveyor,metering sensor,pneumatic components.Ensuring the high reliability of the batching plant.

4.The mixer is equipped with a high-pressure automatic cleaning system.

5.Each maintenance part is equipped with an inspection ladder so that there is enough space for manipulation.

Leave Message

Parameters Table

ITEMS

UNITS

CBP60S

  Theoretical Productivity

m³/h

60

  Mixer model

/

JS1000

  Motor power

kW

2×22

  Nominal capacity of mixer

L

1500

  Automatic Cycle Period

S

60

  Max.aggregate size(crushed stone / pebble)

mm

60/80

  Aggregate bin capacity

m³

3×10

  Type of aggregate

/

3

  Weighing range and accuracy of aggregate

kg

(833~2500)±2%

  Weighing range and accuracy of cement

kg

(200~600)±1%

  Weighing range and accuracy of water

kg

(100~300)±1%

  Weighing range and accuracy of additive

kg

(7~20)±1%

  Total power(Without silo & screw conveyor)

kW

70

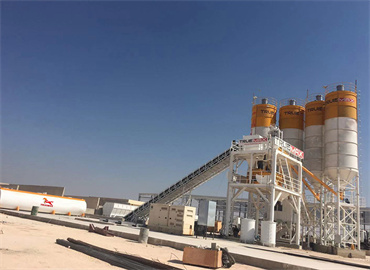

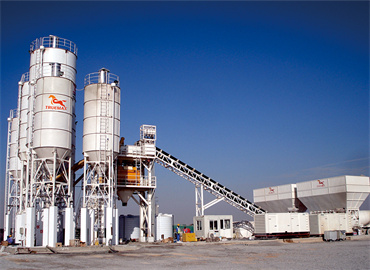

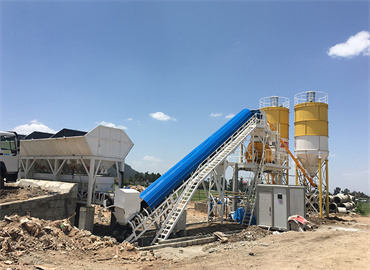

Customer case

CBP60S
