Mobile concrete batching plant

CBP60M
CBP60M
Introduction:Easy to control,the whole station adopts computer control system.

Product Details

1.High-strength structure design,the whole station structure is easy to install,disassemble and transport.

2.Excellent mixing performance,the mixer mainly adopts twin-shaft type.

3.Easy to control,the whole station adopts computer control system.

4.The dust removal effect is good,and the active and passive dust removal technology is adopted to minimize the pollution level in the main station.

5.Low energy consumption and small installed power.The concrete material is easy to mix evenly after entering the mixer.

Leave Message

Parameters Table

ITEMS

UNITS

CBP60M

  Theoretical Productivity

m³/h

60

  Mixer model

/

JS1000

  Motor power

kW

2×22

  Nominal capacity of mixer

L

1500

  Automatic Cycle Period

S

60

  Max.aggregate size(crushed stone / pebble)

mm

60/80

  Aggregate bin capacity

m³

4×10

  Type of aggregate

/

4

  Weighing range and accuracy of aggregate

kg

(833~2500)±2%

  Weighing range and accuracy of cement

kg

(200~600)±1%

  Weighing range and accuracy of water

kg

(100~300)±1%

  Weighing range and accuracy of additive

kg

(7~20)±1%

  Total power(Without silo & screw conveyor)

kW

76

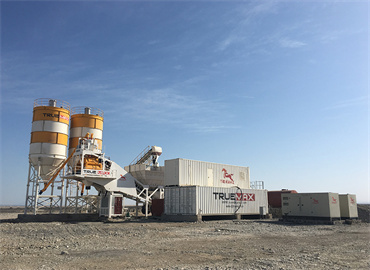

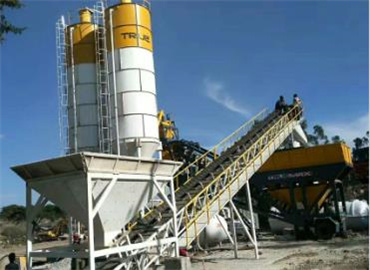

Customer case

Easy to control,the whole station adopts computer control system.
